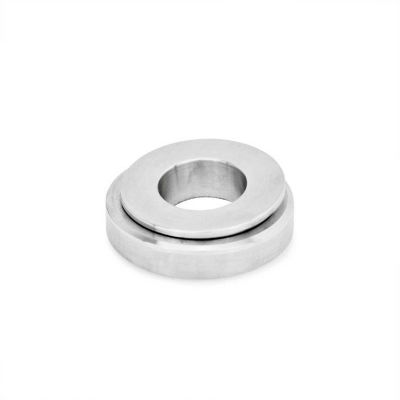

Gn 350.3 features two spherical washers that are used together and cannot be detached from each other. The load bearing capacity of these spherical washers is relatively high. This is not only due to the material quality but also to the matched curve of the concave washer.
- Height is 13/16"
- Static load is 111280 lbf.
- Brand J.W
- Winco
- Manufacturers part number 58wla9
- Size M24
- Outer dia. 3-1/8"
- Grade European standard no
- 1.7225 (42crmo4v)
- Material Stainless steel
- Finish Matte
- Color Silver
- Country of origin Import
- Unit of measurement Inch (imperial)
- Package qty 1
- Type Spherical washer set
- Combined thickness 13/16"
- Female i.D. 2.4"
- Male i.D. 1.73"
