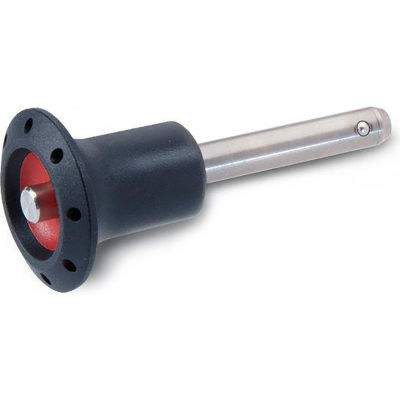

Gn 113.6 heavy duty ball lock pins are used for rapid connecting and securing of components or workpieces. A typical application is locating pins that have to regularly be moved in and out of position. These ball lock pins have a high load capacity, due to the pin being made of heavy duty, hardened and highly abrasion-resistant stainless steel.
- By depressing the spring loaded push button, the two balls are freed, and by releasing the push button the balls are locked
- Locked pin diameter inches is 0.28" and double shear strength is 7868 lbf.
- Pin diameter inches 0.24
- Pin length inches 0.98
- Handle diameter 1.18"
- Finish Plain
- Nose length inches 0.28
- Type Ball lock pins
- Handle length 1.02"
- Package quantity 1
- Country of origin Import
- Color finish Silver
- Construction Stainless steel
- Series Gn113.6
- Brand J.W
- Winco
- Manufacturers part number 6w25paz
