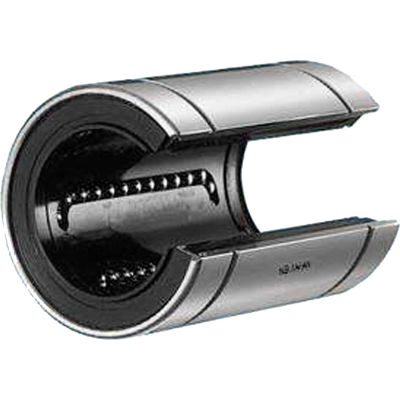

Nb corp sws8uu-op open linear bearing w/seals, 1/2"id, ss
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
- H .3125"
- Id 1/2
- L 1-1/4
- L tolerance 0-0.008"
- Od 0.875
- Dynamic rating (lbf) 114.65
- W 0.049
- Description Open linear bearing w/seals
- Groove length 0.049"
- Number of ball circuits 3
- D 0-0.0005"
- Dr tolerance 0-0.0004"
- Brand Nb corporation
- Material Stainless steel
- Manufacturers part number Sws8uu-op
- B 0.9625
- Static load rating lbs 176.25
