Product Details

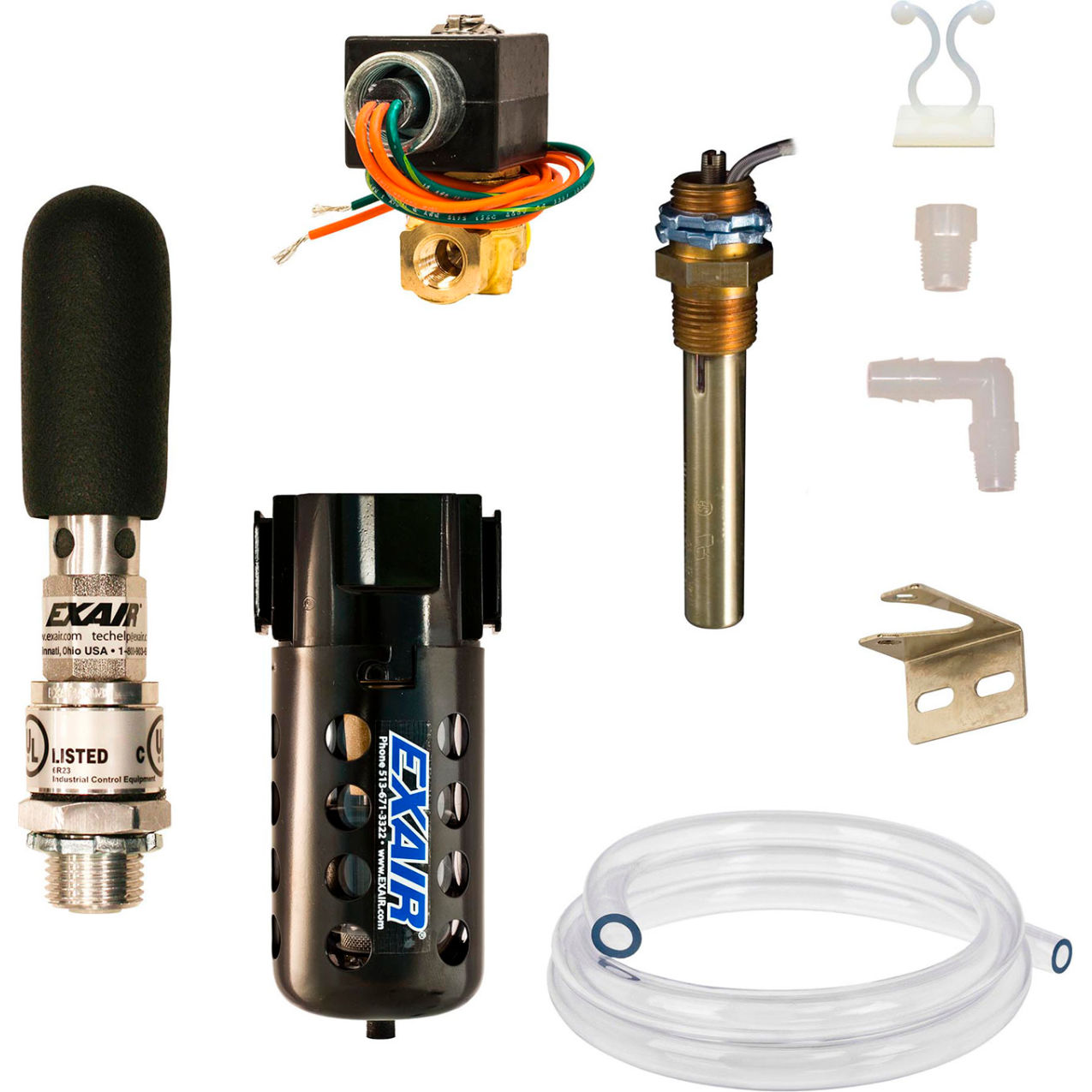

NEMA 12 (IP54) Cabinet Cooler® systems are dust-tight and oil-tight units ideal for general industrial environments without liquids or corrosives, offering dirt, dust, and oil resistance. These thermostat-controlled systems are designed for efficient operation by activating the cooler only when internal temperatures approach critical levels, making them suitable for fluctuating heat loads caused by environmental or seasonal changes. The standard thermostat control includes an adjustable thermostat factory set at 95°F (35°C). The compact NEMA 12 cooler can be installed in minutes through a standard electrical knockout while maintaining the NEMA rating of the electronic enclosure. The systems are UL listed and CE compliant, providing a low-cost, reliable method to cool and purge electronic control panels using a vortex tube that produces cold air from compressed air without moving parts. Cooling capacities reach up to 5,600 BTU/hr (1,641 watts) with a quiet operation. Key features include installation in minutes, stabilization of enclosure temperature and humidity, absence of CFCs, no moving parts for maintenance-free operation, mounting in standard electrical knockouts, prevention of nuisance tripping and heat damage, elimination of fans, filters, and lost production, along with stopping circuit drift, dirt contamination, and providing washdown protection. The NEMA 12 Cabinet Cooler systems comply with OSHA safety requirements and the EU general product safety directives. Warranty information and dimensional specifications are not provided in the data supplied.
