Product Details

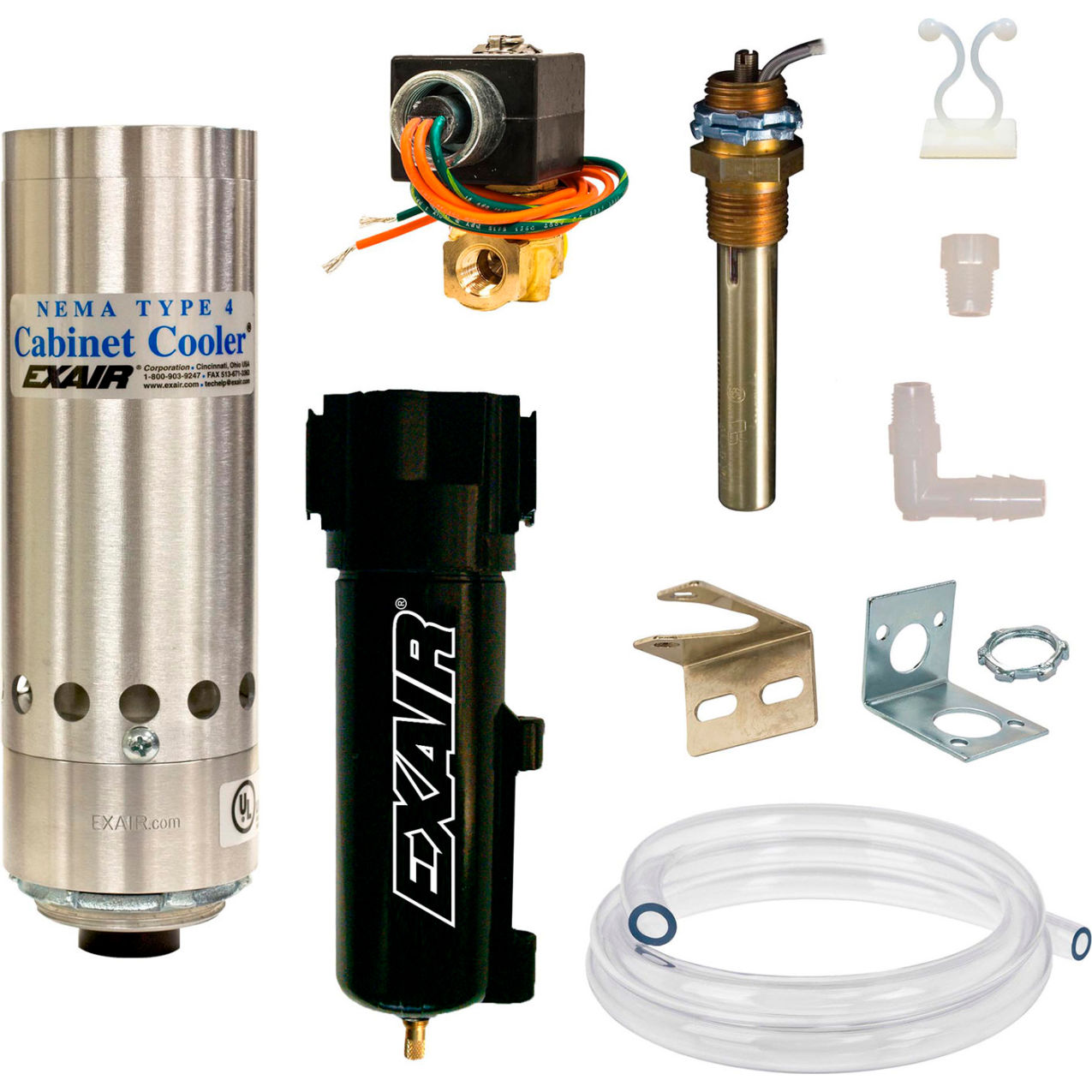

NEMA 4X thermostat control systems efficiently operate a cabinet cooler by activating it only when internal temperatures approach critical levels, making them ideal for fluctuating heat loads due to environmental or seasonal changes. These thermostat-controlled systems include an adjustable thermostat factory set at 95°F (35°C) and incorporate NEMA 4X (IP66) stainless steel cabinet coolers suitable for food service and corrosive environments. EXAIR® cabinet coolers use a vortex tube to produce cold air from compressed air without moving parts. The compact cooler installs easily through a standard electrical knockout and features a low pressure relief valve for both the vortex tube and cabinet air exhaust, which closes to maintain the integrity of NEMA 4 enclosures when the cooler is off. Available in various cooling capacities up to 5,600 BTU/hr. (1,641 watts), these NEMA 4X (IP66) Cabinet Cooler® systems are dust-tight, oil-tight, splash resistant, corrosion resistant, and suitable for indoor/outdoor service. All cabinet coolers are UL listed and CE compliant. They are used in applications including programmable controllers, line control cabinets, motor control centers, relay panels, NC/CNC systems, modular control centers, CCTV cameras, computer cabinets, cool laser housings, and electronic scales. Key features include quiet operation, maintenance-free design with no moving parts, stabilization of enclosure temperature and humidity, elimination of fans and filters, prevention of heat damage and circuit drift, protection against dirt contamination, and provision of washdown protection, all while maintaining NEMA 4 integrity (IP66).
