Product Details

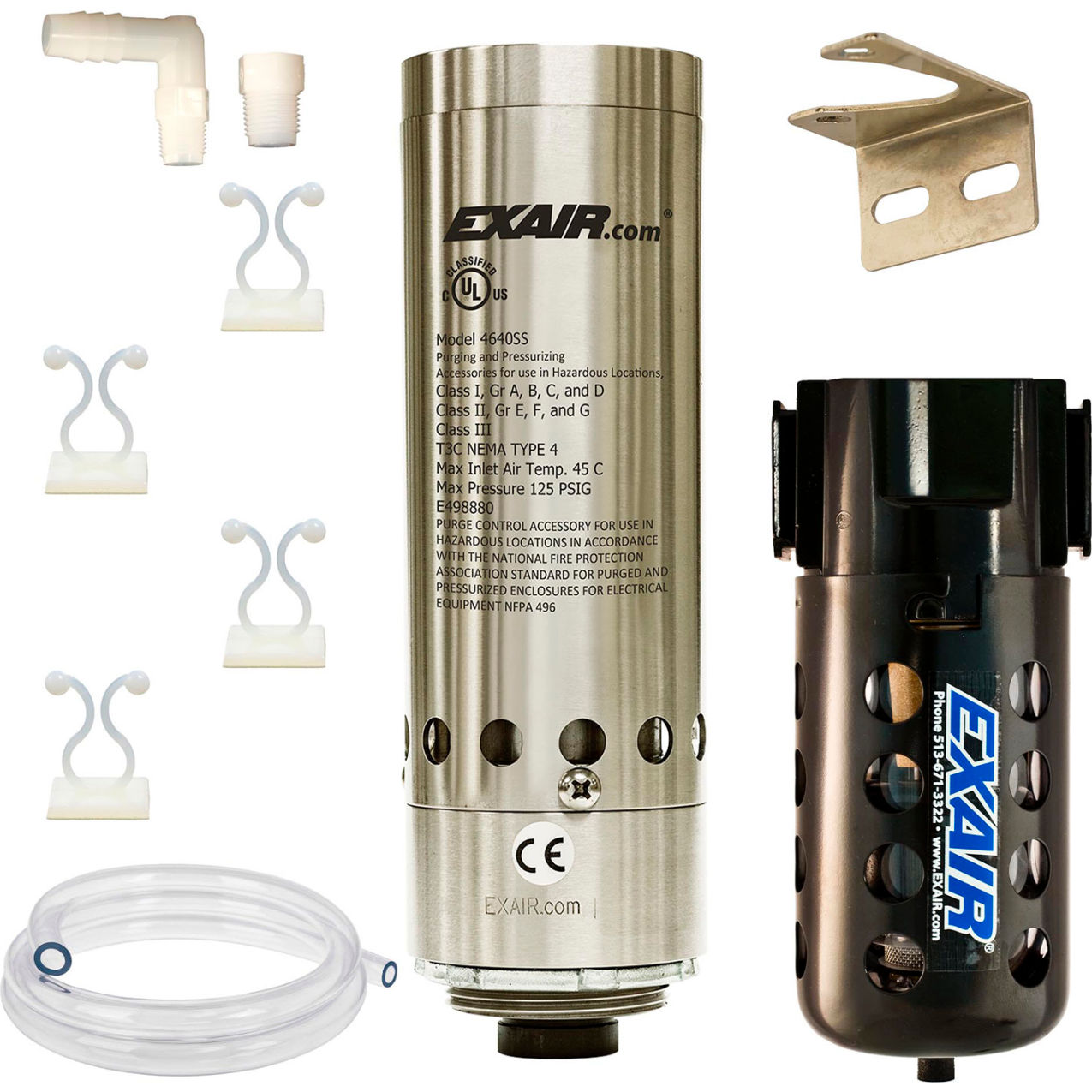

Continuous operation hazardous location NEMA 4 (IP66) cabinet cooler systems are engineered and approved for use on purged electrical enclosures within classified areas, meeting UL requirements for Class I Div 1, Groups A, B, C, and D; Class II Div 1 Groups E, F, and G; and Class III hazardous locations. These systems offer cooling capacities ranging from 1,000 BTU/hr to 5,600 BTU/hr and can be installed in minutes through a standard electrical knockout. Designed for continuous operation with constant cooling and positive purge, the NEMA 4 (IP66) cabinet coolers are dust-tight, oil-tight, splash resistant, and suitable for indoor or outdoor service. They feature a low-pressure relief valve that seals when the cooler is not operating to maintain enclosure integrity. Each system includes a water-dirt filter separator to prevent water condensate and dirt from entering the enclosure and a cold air distribution kit for directing airflow to circulate or target hot spots. All cabinet coolers are UL classified and CE compliant. These HazLoc cabinet cooler systems are not purged and pressurized control systems and should be used only in conjunction with a purged and pressurized control system. The product warranty terms apply in accordance with manufacturer specifications.
