Product Details

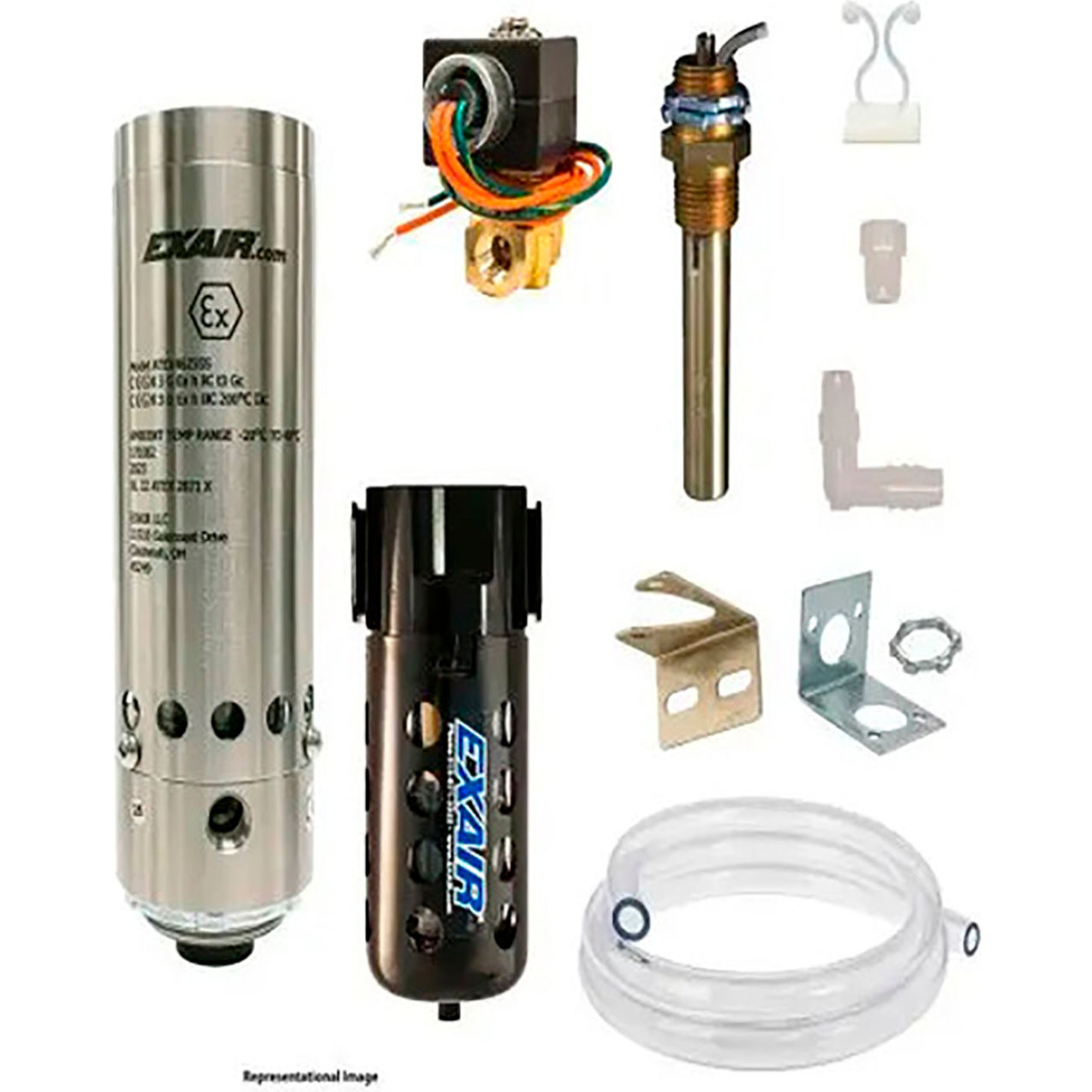

Stainless steel thermostat controlled ATEX cabinet cooler systems are engineered and approved for use on purged electrical enclosures within classified areas, specifically Zones 2 and 22. These systems have been tested by UL and meet stringent ATEX requirements. They provide cooling capacities ranging from 1,000 BTU/hr to 5,600 BTU/hr and can be installed in minutes through a standard electrical knockout. The thermostat control system includes an adjustable thermostat factory set at 95°F (35°C), ensuring efficient operation by activating the cooler only when internal temperatures approach critical levels, which is ideal for fluctuating heat loads due to environmental or seasonal changes. These coolers incorporate a low-pressure relief valve that seals when not operating to maintain the integrity of NEMA 4X enclosures, which are dust-tight, oil-tight, splash resistant, suitable for indoor/outdoor service, and corrosion resistant. Each system includes a water-dirt filter separator to prevent water condensate and dirt from entering the enclosure, as well as a cold air distribution kit to direct air circulation or target hot spots. All cabinet coolers are CE compliant. These ATEX cabinet cooler systems are not purged and pressurized control systems and are designed to be used in conjunction with, not as a replacement for, a purged and pressurized control system. Typical applications include programmable controllers, line control cabinets, motor control centers, relay panels, NC/CNC systems, and modular assemblies.
