Product Details

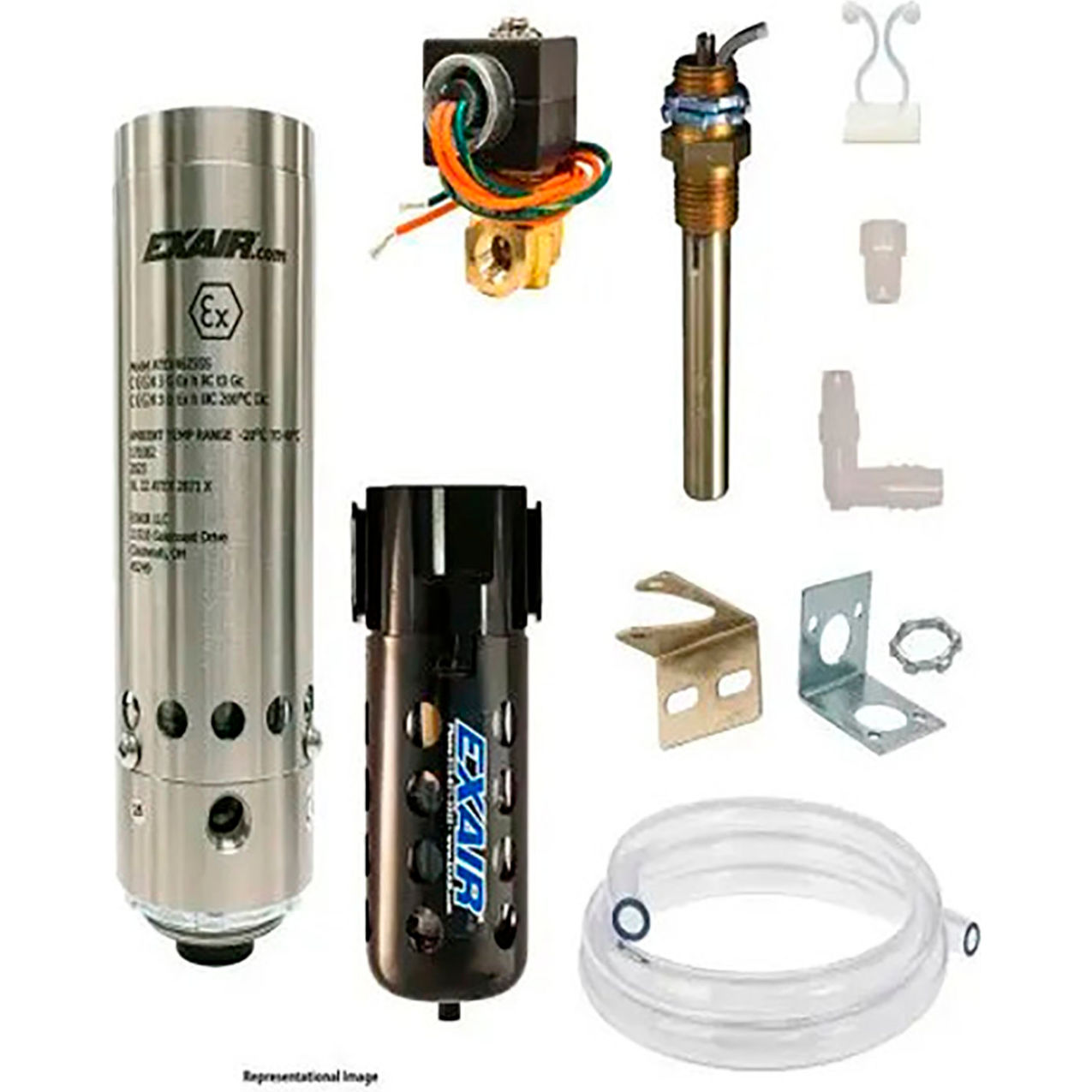

Aluminum thermostat controlled ATEX cabinet cooler systems are engineered and approved for use on purged electrical enclosures found within classified areas, specifically zones 2 and 22. These systems have been tested by UL and meet stringent ATEX requirements. The cabinet coolers provide cooling capacities ranging from 1,000 BTU/hr to 5,600 BTU/hr and can be installed through a standard electrical knockout in minutes. The thermostat control system, which includes an adjustable thermostat factory set at 95°F (35°C), efficiently operates the cooler by activating it only when internal temperatures approach critical levels, making it ideal for fluctuating heat loads caused by environmental or seasonal changes. Each unit incorporates a low-pressure relief valve that closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 enclosure (dust-tight, oil-tight, splash resistant, suitable for indoor/outdoor service). The systems also include a water-dirt filter separator to prevent water condensate and dirt from entering the enclosure, as well as a cold air distribution kit that directs airflow for circulation or toward hot spots. All cabinet coolers are CE compliant. These ATEX cabinet cooler systems are not purged and pressurized control systems and should be used only in conjunction with a purged and pressurized control system, not as a replacement. Warranty information is provided but specific terms were not included in the original description.
