Product Details

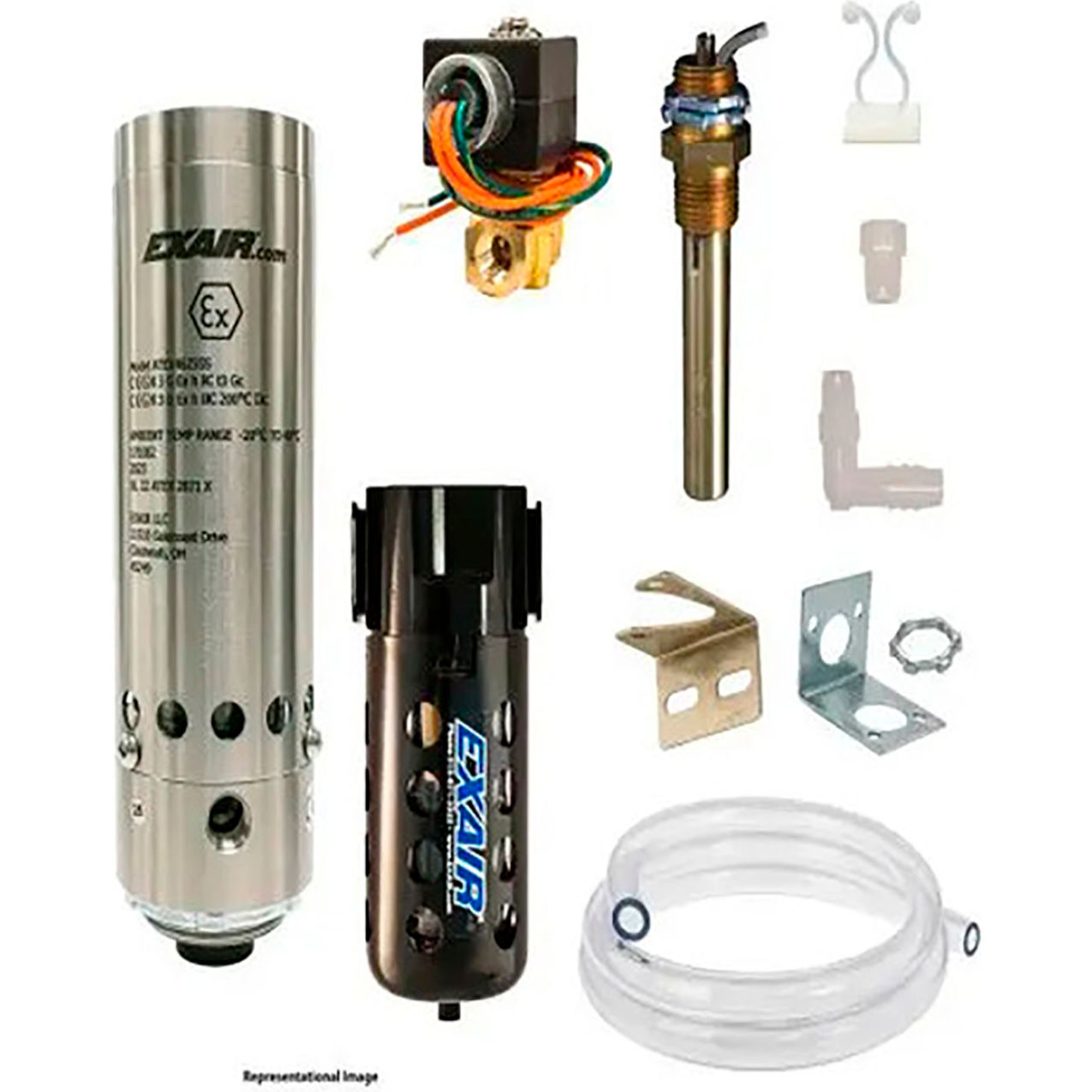

Aluminum thermostat controlled ATEX cabinet cooler systems are engineered and approved for use on purged electrical enclosures found within classified areas, meeting stringent ATEX requirements as tested by UL. These systems provide a low-cost and reliable method for cooling purged electric control panels in such environments and can be installed in minutes through a standard electrical knockout. The thermostat-controlled system includes an adjustable thermostat factory set at 95°F (35°C), making it the most efficient way to operate a cabinet cooler by activating the cooler only when internal temperatures approach critical levels, ideal for fluctuating heat loads caused by environmental or seasonal changes. Each ATEX cabinet cooler system incorporates a low-pressure relief valve that closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 (IP66) enclosure, ensuring it remains dust-tight, oil-tight, splash resistant, and suitable for indoor or outdoor service. The package includes a water-dirt filter separator to prevent water condensate and dirt from entering the enclosure, along with a cold air distribution kit to direct air circulation or target hot spots. All cabinet coolers are CE compliant. These ATEX cabinet cooler systems are not purged and pressurized control systems and should be used only in conjunction with a purged and pressurized control system, not as a replacement. They are suitable for applications including programmable controllers, line control cabinets, motor control centers, relay panels, NC/CNC systems, modular control centers, CCTV cameras, computer cabinets, laser housings, and electronic scales.
