Product Details

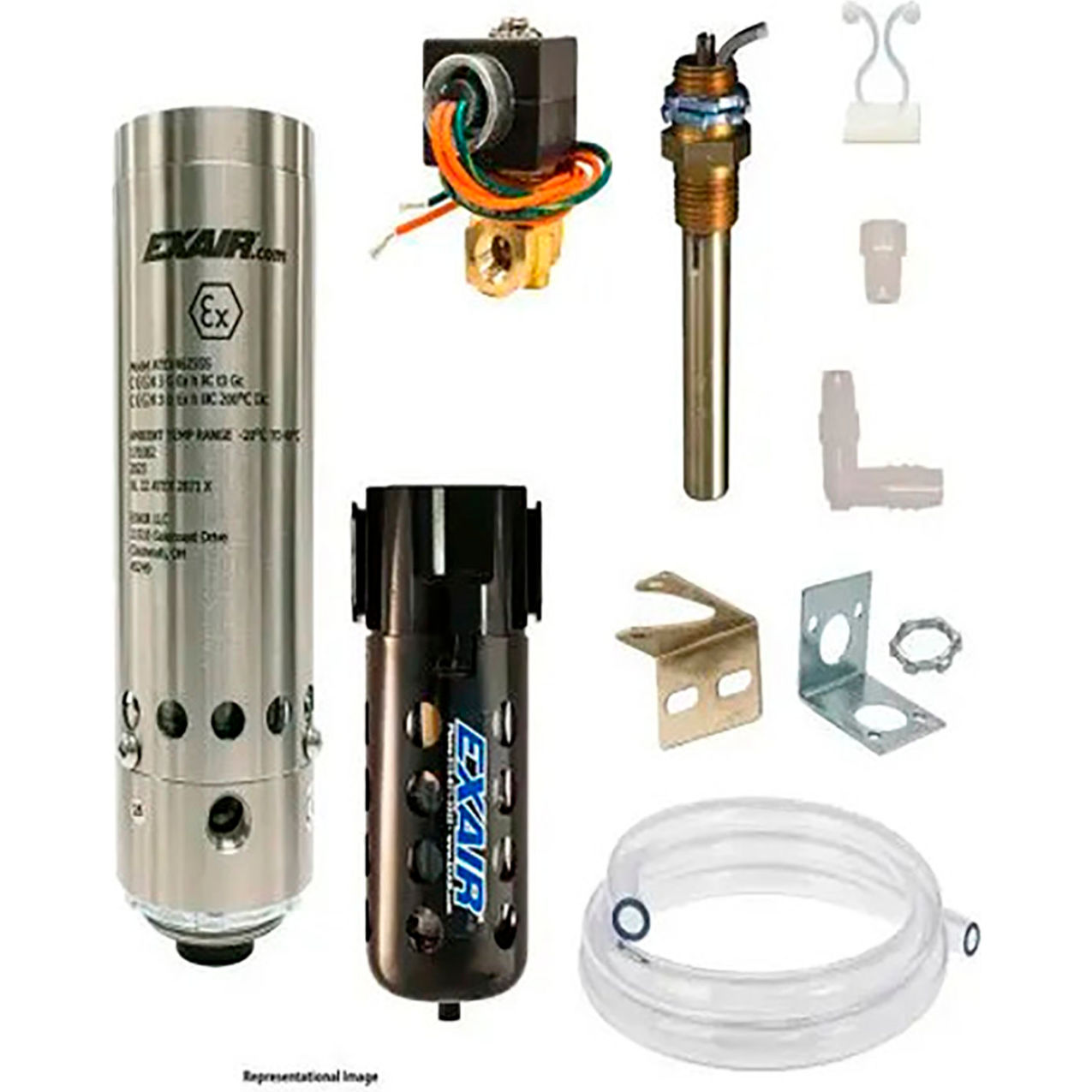

Aluminum thermostat controlled ATEX cabinet cooler systems are engineered and approved for use on purged electrical enclosures in classified areas, having been tested by UL and meeting stringent ATEX requirements. These systems provide a low-cost, reliable method to cool purged electric control panels and can be installed in minutes through a standard electrical knockout. Thermostat control systems operate efficiently by activating the cooler only when internal temperatures approach critical levels, with an adjustable thermostat factory set at 95°F (35°C), ideal for fluctuating heat loads caused by environmental or seasonal changes. The ATEX cabinet coolers feature a low-pressure relief valve that closes and seals when not operating to maintain the integrity of a NEMA 4 (IP66) enclosure, ensuring dust-tight, oil-tight, splash-resistant protection for indoor or outdoor service. Each system includes a water-dirt filter separator to prevent water condensate and dirt from entering the enclosure and a cold air distribution kit to direct airflow for circulation or targeting hot spots. All cabinet coolers are CE compliant. These systems are not purged and pressurized control systems and should be used only in conjunction with a purged and pressurized control system. They are suitable for applications such as programmable controllers, line control cabinets, motor control centers, relay panels, NC/CNC systems, modular control centers, CCTV cameras, computer cabinets, laser housings, and electronic scales.
