Product Details

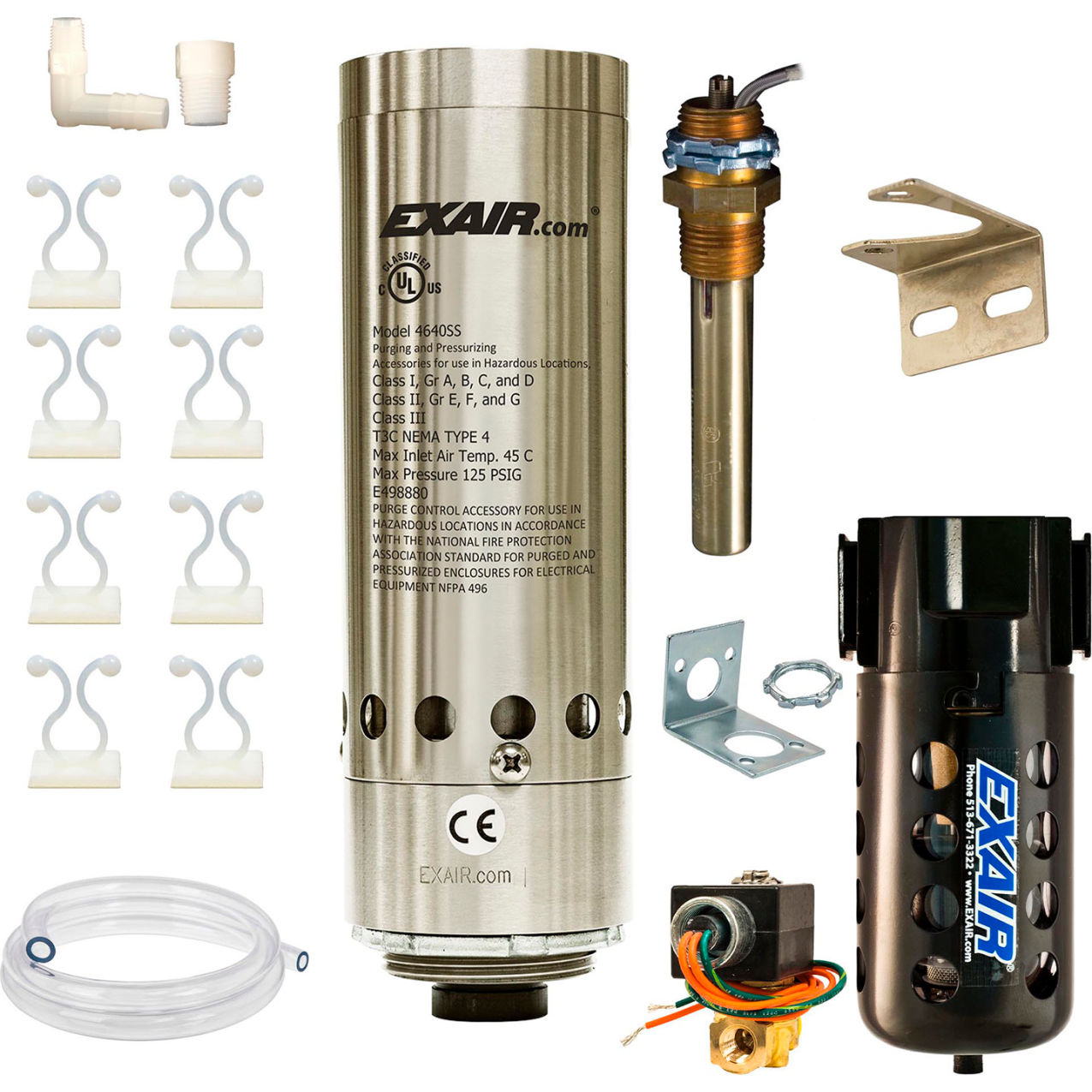

Thermostat controlled hazardous location NEMA 4 (IP66) cabinet cooler systems are engineered and approved for use with purged electrical enclosures in classified areas, meeting UL requirements for Class I Div 1 Groups A, B, C and D; Class II Div 1 Groups E, F and G; and Class III hazardous locations. These cabinet cooler systems provide cooling capacities ranging from 1,000 BTU/hr to 5,600 BTU/hr and can be installed easily through a standard electrical knockout. The NEMA 4 thermostat control system includes an adjustable thermostat factory set at 95°F (35°C) and operates efficiently by activating only when internal temperatures near critical levels, making it suitable for fluctuating heat loads from environmental or seasonal changes. The cooler features a low-pressure relief valve that seals when not operating to maintain NEMA 4 enclosure integrity and incorporates a water-dirt filter separator to prevent condensate and dirt ingress. Additionally, the package includes a cold air distribution kit for directing air circulation or targeting hot spots. These systems are UL classified and CE compliant, designed for indoor/outdoor use with dust-tight, oil-tight, and splash-resistant protection. The Hazloc cabinet cooler systems are intended for use with purged and pressurized control systems but are not purged and pressurized control systems themselves. Warranty terms apply as specified by the manufacturer.
