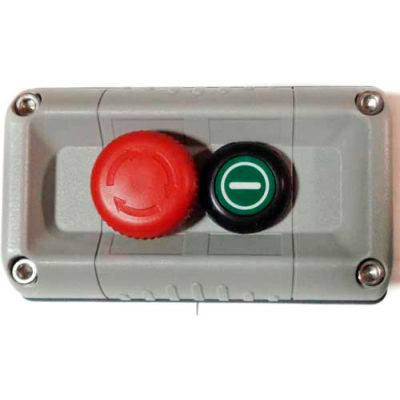

Tecno elettrica ravasi (t.E.R.), F71fg11000000001 victor wall mount control station, gray, 2 hole, e-stop + start this victor control station can be customized into a shunt-trip configuration with the addition of one prsl1801pi contact. Victor wall-mount control stations are designed for industrial applications. Victor wall-mounts support a safer, more efficient interface between an operator and a motor application.
- This auxiliary control acts on the motor of the machine through a power interface, such as a contactor or relay through plc logic
- Victor stations are industrial control stations designed for heavy duty use
- Design victor wall-mount control stations are designed to look and feel good
- Each graphic element is linked to a practical advantage
- Its dimensions and shape reflect careful attention to ergonomics
- Despite their good looks, victor stations will prove reliable in the toughest conditions
- All victor control stations are designed for extreme outdoor weather (ip67 rated)
- Distinguishing features victor control stations are better than their competition because they feature extreme ease, and breadth, of customization
- Each victor button can be fitted with one of numerous button inserts
- The top half of the victor shell is not necessary while wiring and mounting
- This wiring flexibility allows direct access to the switches while the control station is mounted
- This ability ultimately saves time and reduces costs of installation
- The emergency stop mushroom pushbutton complies with iso 13850 regulations and is equipped with positive opening nc switches
- Options victor wall-mount control stations are available in configurations with 1 to 8 holes
- Each hole can be outfitted with up to 3 contacts
- Contact options include 1no or 1nc switches or leds (24/48 v ac/dc or 110/230 v ac.) Actuators are available in various types and colors: one or two speed buttons, selector switches, key-operated switches in various actuation configurations, pilot lights, pu
- Brand Tecno elettrica ravasi
- Manufacturers part number F71fg11000000001
- Color Gray
- Certifications En60204-1,60947-1,60947-5-1,60947-5-5,60529, iso13850, 2006/95/ce, 2006/42/ce
- Height 122mm
- Approvals Cul
- Width 73 mm
- Construction Molded plastic enclosure, rubber gaskets & buttons, plastic switch housing
- Depth 62mm
- Number of buttons 2-hole, e-stop + start
- Environmental rating Ip 66 / ip 67 / ip 69k
- Includes 1 complete station, contacts, manual, cable clamp
