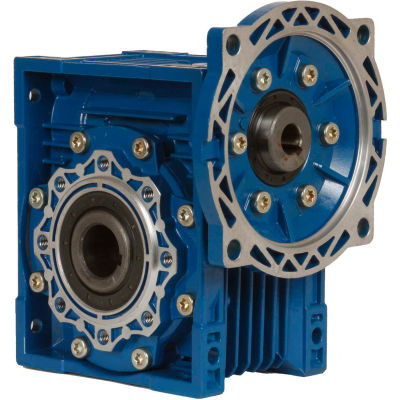

Worldwide electric calm63-15/1-145tc aluminum worm gear reducer, 63mm, 15:1, 145tc nema frame
Aluminum worm gear reducers are available in box sizes 30 - 90mm in ratio's from 7.5:1 to 100:1. The units have an aluminum alloy housing, nema motor input flanges, come pre-filled with synthetic oil and have a 1 year warranty. Special features include two bearings on the input and output shafts, double lip oil seals, epoxy paint for rust prevention, and hollow output bores with plug-in output shafts.
Aluminum worm gear reducers are available in box sizes 30 - 90mm in ratio's from 7.5:1 to 100:1. The units have an aluminum alloy housing, nema motor input flanges, come pre-filled with synthetic oil and have a 1 year warranty. Special features include two bearings on the input and output shafts, double lip oil seals, epoxy paint for rust prevention, and hollow output bores with plug-in output shafts.
- Output speed (rpm) 117
- Overhung load lbs. 583
- Efficiency 82
- Wcd center mm 63
- Box size 63
- Gear ratio 15:1
- Output diameter inches 1.125
- Max torque (in-lbs.) 1239
- Max input hp 2.76
- Manufacturers part number Calm63-15/1-145tc
- Brand Worldwide electric corporation
- Nema frame 145tc
- Bore type Hollow bore
