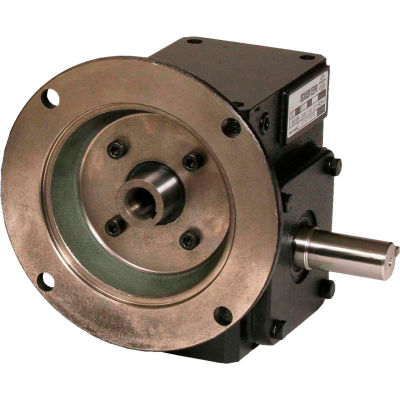

Worldwide hdrf133-20/1-r-56c cast iron right angle worm gear reducer 20:1 ratio 56c frame cast iron worm gear reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #fc20 all cast iron housing, nema motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty. Features:
- Tapered roller bearings on the input and output shafts embedded double-lip oil seals anti-rust primer applied inside and outside of the gearbox air dry special black paint
- Output speed (rpm) 88
- Overhung load lbs. 300
- Efficiency 78
- Gear ratio 20:1
- Wcd center inches 1.33
- Max input hp 0.5
- Max torque (in-lbs.) 276
- Output shaft thrust load (lbs.) 300
- Backlash (ft.) (Angular minutes) 27
- Description Cast iron right ange worm gear reducer
- Manufacturers part number Hdrf133-20/1-r-56c
- Cross reference Boston f713; grove bmq213
- Brand Worldwide electric corporation
- Nema frame 56c
