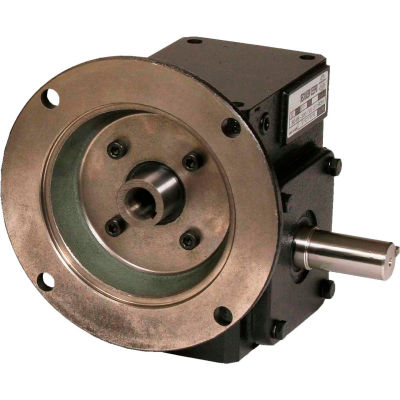

Worldwide hdrf262-15/1-r-145tc cast iron right angle worm gear reducer 15:1 ratio 145t frame cast iron worm gear reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #fc20 all cast iron housing, nema motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty. Features:
- Tapered roller bearings on the input and output shafts embedded double-lip oil seals anti-rust primer applied inside and outside of the gearbox air dry special black paint
- Output speed (rpm) 120
- Overhung load lbs. 1000
- Efficiency 87
- Gear ratio 15:1
- Wcd center inches 2.62
- Max input hp 3.22
- Max torque (in-lbs.) 1577
- Output shaft thrust load (lbs.) 1000
- Backlash (ft.) (Angular minutes) 17
- Description Cast iron right ange worm gear reducer
- Manufacturers part number Hdrf262-15/1-r-145tc
- Cross reference Boston f726; grove bmq232
- Brand Worldwide electric corporation
- Nema frame 145tc
