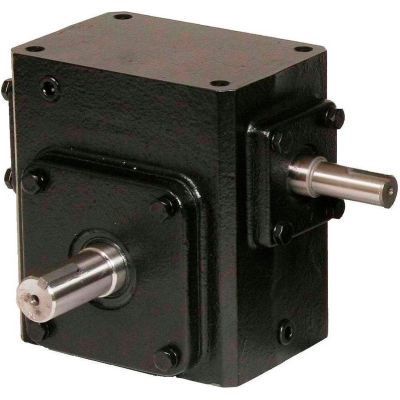

Worldwide hdrs206-50/1-l cast iron right angle worm gear reducer 50:1 ratio cast iron worm gear reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #fc20 all cast iron housing, nema motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty. Features:
- Tapered roller bearings on the input and output shafts embedded double-lip oil seals anti-rust primer applied inside and outside of the gearbox air dry special black paint
- Output speed (rpm) 35
- Overhung load lbs. 700
- Efficiency 62
- Gear ratio 50:1
- Wcd center inches 2.06
- Max input hp 0.74
- Max torque (in-lbs.) 830
- Output shaft thrust load (lbs.) 750
- Description Cast iron right ange worm gear reducer
- Backlash (ft.) (Angular minutes) 17
- Cross reference Boston 721; grove b220
- Manufacturers part number Hdrs206-50/1-l
- Brand Worldwide electric corporation
