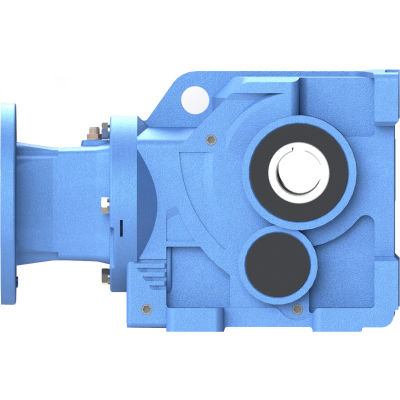

Wwe khn47-40/1-h-143/5tc, cast-iron helical bevel speed reducer; 143/5tc input flange, 40/1, foot mt cast-iron, helical bevel speed reducers are available in box sizes 37-97 to support 1/4 hp to 30 hp nema frame motors in speed ratio's from 5:1 to 120:1. The units have nema motor quill style input flanges and standard hollow output bores, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.
- Available in foot-mounted (khn), torque arm mounted (kan), or b5/b14 flange mounted (kan) styles
- Single shaft and double shaft output kits available.
- Output speed (rpm) 42
- Overhung load lbs. 750
- Max input hp 2.5
- Max torque (in-lbs.) 3372
- Box size 47
- Cross reference Sew k47
- Manufacturers part number Khn47-40/1-h-143/5tc
- Brand Worldwide electric corporation
- Nema frame 143/5tc
- Gear ratio 40
- Actual gear ratio 41.36
- Gear stages 3
