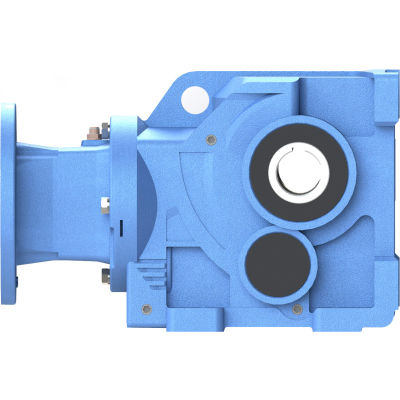

Wwe khn97-20/1-h-284/6tc, cast-iron helical bevel speed reducer; 284/6tc input flange, 20/1, foot mt cast-iron, helical bevel speed reducers are available in box sizes 37-97 to support 1/4 hp to 30 hp nema frame motors in speed ratio's from 5:1 to 120:1. The units have nema motor quill style input flanges and standard hollow output bores, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.
- Available in foot-mounted (khn), torque arm mounted (kan), or b5/b14 flange mounted (kan) styles
- Single shaft and double shaft output kits available.
- Output speed (rpm) 82
- Overhung load lbs. 5100
- Max input hp 48.5
- Max torque (in-lbs.) 33760
- Box size 97
- Manufacturers part number Khn97-20/1-h-284/6tc
- Cross reference Sew k97
- Brand Worldwide electric corporation
- Nema frame 284/6tc
- Actual gear ratio 21.33
- Gear ratio 20
- Gear stages 3
