Product Details

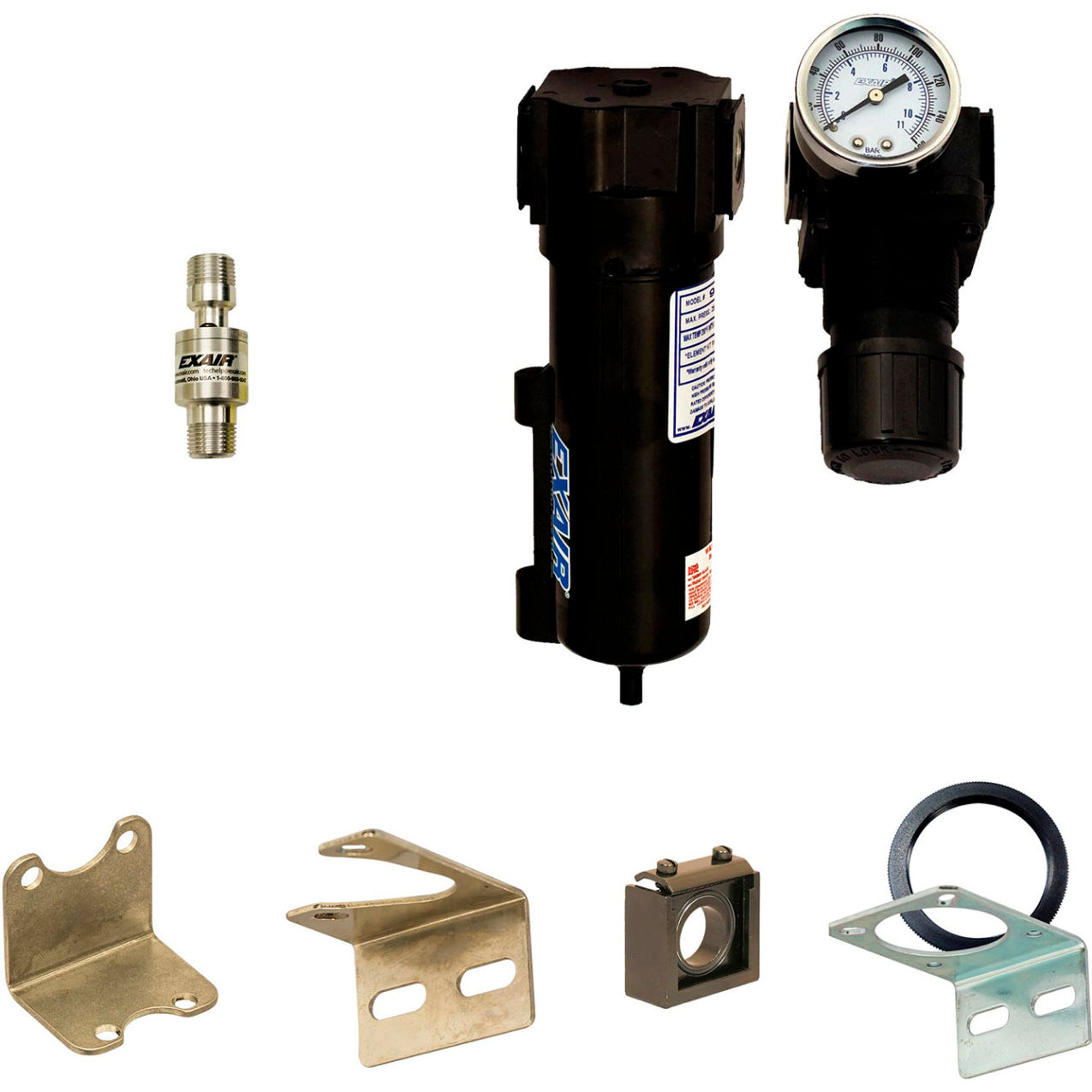

The kit includes a threaded Line Vac, mounting bracket, filter separator, and pressure regulator with coupler. EXAIR's threaded Line Vac air-operated conveyors convert ordinary pipe into a powerful conveying system suitable for parts, scrap, trim, and other bulk materials. These Line Vacs easily attach to plumbing pipe couplers, allowing for the construction of a complete system using standard pipe and fittings. The aluminum construction provides an economical choice for general-purpose conveying with a maximum temperature rating of 250°F (121°C). Typical applications include hopper loading, fiber tensioning, material conveying, waste and trim removal, chip removal, part transfer, and filling operations. Key features include a compact design, quiet operation, no moving parts, and high throughput capability. The EXAIR Line Vacs comply with OSHA safety requirements, the EU General Product Safety Directive (2001/95/EC), and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC), with all sound level measurements taken at 3 feet away. EXAIR supports Section 1502 of the Dodd-Frank Wall Street Reform and Consumer Protection Act, ensuring compliance with the conflict minerals rule and documenting this via the CMRT 3.02 template, demonstrating commitment to conflict-free products. Warranty information is included as per EXAIR's standard terms.
