Product Details

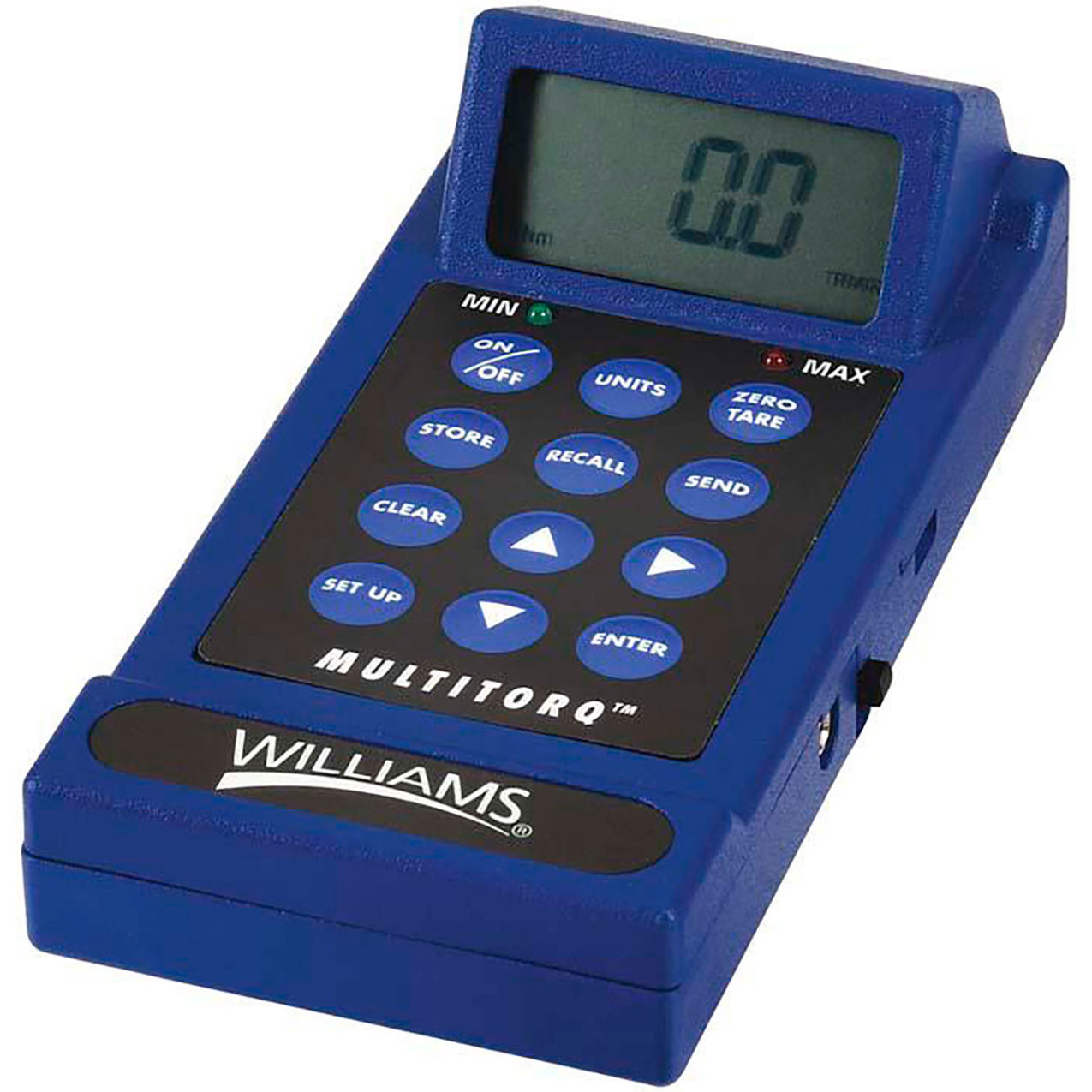

The MultiTorq portable electronic torque meter is a highly versatile torque analyzer/data acquisition system that can be used with sockets, extensions, universal joints, ratcheting drivers, or any combination of these. It displays torque readings from sensors that attach between sockets and driver with an accuracy of ±1% of reading (±2% reading for 20 in. oz., and 10 in. lb.) 10-100% of sensor range. The torque analyzer features a wide angle viewing LCD display with selectable readouts in various units like ft. lb., in. lb., in. oz., Nm, DNm, MKg, and CMKg. Torque target settings can be entered via a push button membrane keyboard, with high and low torque limits adjustable to give an audible and visual alarm. The user can select track mode to display torque values as they are applied, or peak mode to display the highest torque value applied, with soft-touch keys for different functions. It has a storage capacity of 3500 measurements, with a 4 digit, 8000 counts display capacity and measures 3" wide, 2.5" high (3" with belt clip), 6" deep, weighing 1 pound. The battery life is 20 hours continuous on a full charge, with battery chargers running on 120 VAC and an optional 220 volt charger available. The output is 9VDC, 200mA with a serial output port of RS-232 (true), 300-19.2K baud, and Mitutoyo (statistical protocol). It operates in a temperature range of -20 to 50 degrees C (-2 to 122 degrees F) and up to 90% humidity, non-condensing. The rechargeable Ni-Cad batteries allow for bi-directional reading (CW and CCW).
