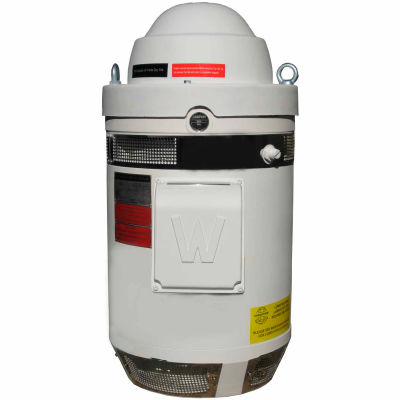

Worldwide electric, wvhs150-18-460-444tp-db-16.5, vhs motor, 150hp, 1800rpm, 444tp, 460v, wpi features:
- Vhs motor wpi enclosure with rodent screen protection 1.15 service factor class f insulation vertical p base high efficiency inverter duty 10:1 variable torque spike resistant wiring per nema mg-1 part 31 120 volt space heaters double thrust bearing design (100-500 hp) for deep well applications winding rtds (125-500 hp) white epoxy paint for cooler surface temperature standard coupling size included � mc440-1.6875 (alternate couplings available)
- Horsepower 150
- Enclosure Wpi
- Frame 444tp
- Brand Worldwide electric corporation
- Mounting P-base
- Motor rpm 60hz 1800
- Motor rpm 50hz 1500
- Rpm 1780
- Phase 3
- Voltage 460
- Hertz 60/50
- Service factor 1.15
- Efficiency type High
- Ambient temp c 40
- Enclosure type Explosion proof
- Duty Continuous
- Manufacturers part number Wvhs150-18-460-444tp-db-16.5
- Rpm range 1701-1800
- Insulation class F
- Poles 4
- Weight lbs. 1792
- Warranty 24 months from invoice
- Fl amps 166.3
- Opposite end bearing size 6318
- Drive end bearing size 7232b/dt
- Degree of protection Ip23
- Fl efficiency 93.3
- Temperature-rise B/80k
- Power factor at full load 0.88
