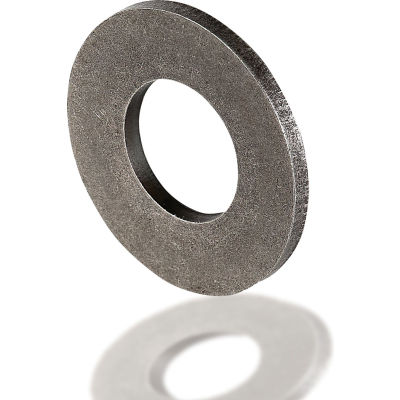

Belleville disc spring - 1.5" o.D. X 0.755" i.D. X 0.072" thick x 0.107" oah - 302 stainless steel belleville disc springs are generally used in heavy load applications.
- They are manufactured with a curved shape in order to produce a spring-like operation.
- Brand Gardner spring
- Manufacturers part number Mb1500-072-s
- Material 302 stainless steel
- Finish Plain
- Package qty 6
- Country of origin Made in usa
- Unit of measurement Inch (imperial)
- Description Belleville disc spring
- Flat load 1180 lbs.
- Load at deflection 565 - 765 lbs.
- Deflection at load 0.018"
- Oah 0.107"
- Thickness 0.072"
- Min i.D. 0.755"
- Max o.D. 1.5"
- Nominal rod size 0.75"
