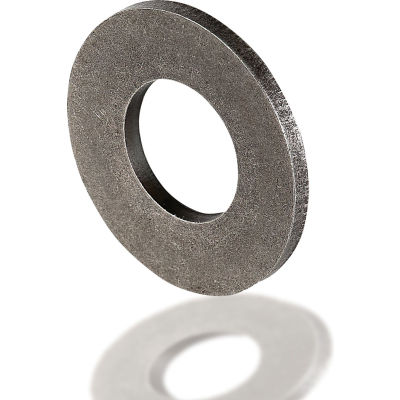

Belleville disc spring - 1.5" o.D. X 0.755" i.D. X 0.045" thick x 0.093" oah - 1074 carbon steel belleville disc springs are generally used in heavy load applications.
- They are manufactured with a curved shape in order to produce a spring-like operation.
- Brand Gardner spring
- Manufacturers part number Mb1500-045
- Material 1074 carbon steel
- Finish Plain
- Package qty 12
- Country of origin Made in usa
- Unit of measurement Inch (imperial)
- Description Belleville disc spring
- Flat load 400 lbs.
- Load at deflection 241 - 327 lbs.
- Deflection at load 0.024"
- Oah 0.093"
- Thickness 0.045"
- Min i.D. 0.755"
- Max o.D. 1.5"
- Nominal rod size 0.75"
