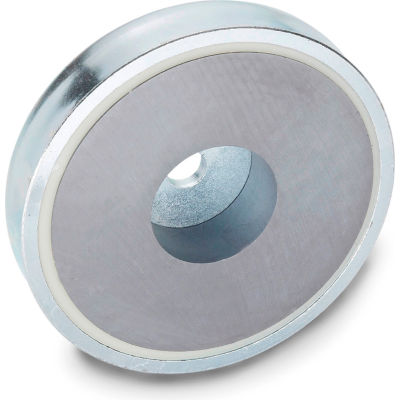

J.W. Winco 50.4-hf-63 retaining magnet assembly disc-shaped w/ thru hole - 2.48" diameter, steel gn 50.4 magnets are a shielded magnetic assembly. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material.
- Temperature resistant to 390°f (200°c),
- Socket cap screw head diameter inches (d5) 0.94
- Construction Zinc plated steel
- Body thickness inches (h) 0.55
- Thru hole inches (d3) 0.33
- Type With thru hole
- Diameter inches 2.48
- Brand J.W
- Winco
- Magnet contruction Hard ferrite srfe (hf type)
- Nominal pulling force 290 n
- Manufacturers part number 50.4-hf-63-14-6.5
