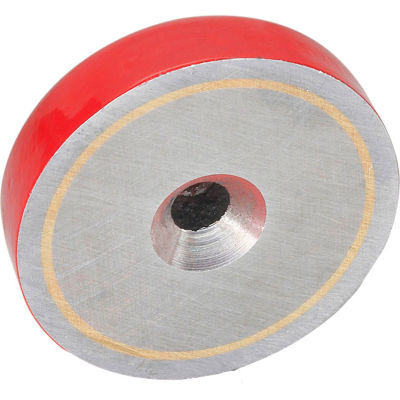

J.W. Winco 58-an-29 pot magnet assembly w/ thru hole - 1.14" diameter, steel gn 58 magnets are a shielded magnetic assembly. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material.
- For easier handling and/or to avoid demagnetization, these magnets have an iron plate on their magnetic surface
- Temperature resistant to 535 °f (280°c), red lacquer temperature resistant to 355 °f (180°c).
- Countersunk screw head diameter inches (d3) 0.41
- Construction Steel - red lacquered finish
- Body thickness inches (h) 0.33
- Type With thru hole
- Thru hole inches (d2) 0.19
- Diameter inches 1.14
- Brand J.W
- Winco
- Magnet contruction Aluminum, nickel and cobalt combination alnico (an type)
- Nominal pulling force 50 n
