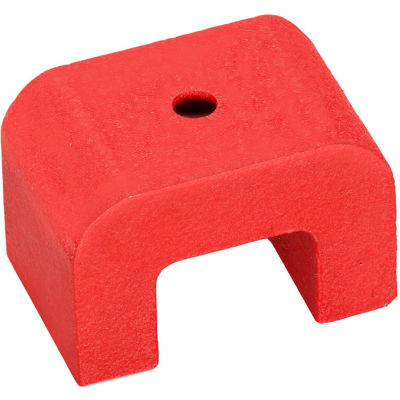

J.W. Winco 62-an-39 u-shaped magnet w/ thru hole - .98" thickness, steel gn 62 magnets have a split magnetic surface. These are non-shielded magnetic systems produced by casting.
- To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material
- For easier handling and/or to avoid demagnetization, these magnets have an iron plate on their magnetic surface
- Type an magnet temperature resistant to 535 °f (280°c), red lacquered finish temperature resistant to 355 °f (180°c).
- Length (b1) 1.54"
- Body thickness inches (h1) 0.98
- Construction Steel - red lacquered finish
- Type With thru hole
- Width (s) .75"
- Thru hole inches (d2) 0.19
- Height (h2) .55"
- Brand J.W
- Winco
- Magnet contruction Aluminum, nickel and cobalt combination alnico (an type)
- Nominal pulling force 90 n
- Width (b)2 1.00"
