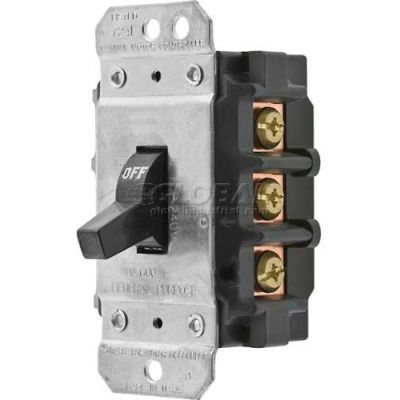

Ideal motor controller suitable as a disconnect. Toggle motor controllers/disconnects can be built into equipment and enclosures with either box or panel-mount installation. Strong on/off action with quick-make, slow break operation provides long-life reliability; 10,000 amp high fault short circuit withstand rating.
- Brand Bryant
- Max voltage 600v ac rms
- Electrical life 6,000 cycles at rated switch load
- Dielectric voltage 2,200v ac minimum for 1 minute
- Box enclosure --
- Amps 30
- Short circuit withstand rating as motor disconnect 60a max j fuses 10,000 rms
- Ul listing Ul 508 industrial control equipment file # e70402
- 600v ac 20
- 480v ac 15
- 240v ac 7.5
- Terminal torque 20 inch pounds
- Terminal accomodations Awg min.
- #14 - awg max
- #10
- Flammability Ul94hb/vo
- Depth inches 2.43
- Csa listing Csa-c22.2 no
- 14 industrial control equipment file # lr-46186
- 120v ac 3
- Product type Motor control sw t
- Poles 3
- Weight lbs 0.5
- Length inches 3.78
- Width inches 2.25
- Phase 3
- Operating temperatures Max
- Continuous 60 deg
- C., Min
- Continuous w/out impact -40 deg c.
- Short circuit withstand rating as motor controller 125a max rk5 fuses
