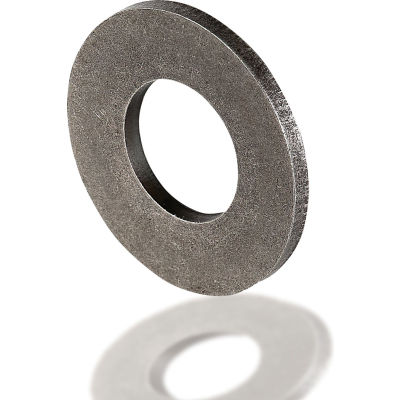

Belleville disc spring - 0.75" o.D. X 0.255" i.D. X 0.052" thick x 0.065" oah - 1074 carbon steel belleville disc springs are generally used in heavy load applications.
- They are manufactured with a curved shape in order to produce a spring-like operation.
- Brand Gardner spring
- Manufacturers part number Mb0750-052
- Material 1074 carbon steel
- Finish Plain
- Package qty 12
- Country of origin Made in usa
- Unit of measurement Inch (imperial)
- Description Belleville disc spring
- Flat load 560 lbs.
- Load at deflection 264 - 358 lbs.
- Deflection at load 0.007"
- Oah 0.065"
- Thickness 0.052"
- Min i.D. 0.255"
- Max o.D. 0.75"
- Nominal rod size 0.25"
