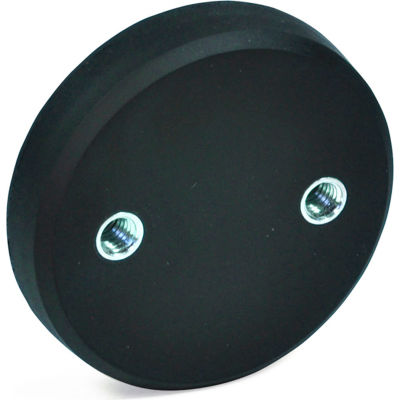

51.6-nd-43-27-m5 retaining magnet assembly disc-shape, 2 int. Threads, rubber shell, 1.69" dia steel gn 51.6 magnets are a shielded magnetic assembly with rubber jacket. They are especially suitable for applications where the surface is easily marred.
- Also, these magnets have an increased coefficient of friction, which creates high lateral retaining force
- Temperature resistant to 175 °f (80°c).
- Center to center distance between threads (m) 1.06
- Construction Zinc plated steel
- Body thickness inches (h) 0.41
- Type With two internal threads and rubber jacket
- Diameter inches 1.69
- Brand J.W
- Winco
- Magnet contruction Neodymium, iron and boron ndfeb (nd type)
- Nominal pulling force 85 n
- Thread (d2) M5 x .8
