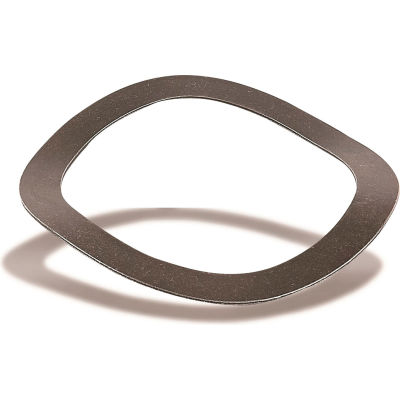

Wave spring - carbon steel - 1.621" o.D. - 1.261" i.D. - 0.0185" thick - 0.112" h - usa - pkg of 25 wave springs may be used to reduce axial end play, particularly in ball bearing applications.
- Wave springs offer light to medium loads and are designed for applications where limited deflection is required or available
- Between 20% and 80% of available deflection the spring rate for wave springs is nearly linear
- Deflection ideally should not exceed 80%
- Wave springs expand less during loading than curved springs
- The number of waves is equal to the number of contact points on one side of the spring
- High carbon steel parts are made from commercial 1074-1095, certified to astm-a684
- Brand Gardner spring
- Manufacturers part number Mw1621-019
- Outside diameter inches 1.621
- Material 1074 high carbon steel
- Finish Plain
- Package qty 25
- Country of origin Made in usa
- Deflection 0.056"
- Inside diameter inches 1.261
- Overall height inches 0.112
- Unit of measurement Inch (imperial)
- Load at deflection 21-30 lbs
- Thickness 0.0185"
