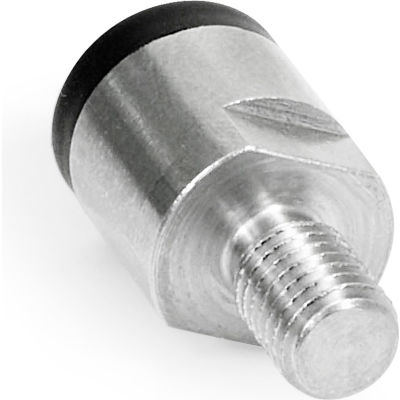

Retaining magnet rod-shaped 52.5-nd-16-m8, w/stud & rubber jacket, magnetic surface, .63" dia. Steel gn 52.5 magnets are a shielded magnetic assembly with rubber jacket. They are especially suitable for applications where the surface is easily marred.
- Also, these magnets have an increased coefficient of friction, which creates high lateral retaining force
- Temperature resistant to 175 °f (80°c).
- Construction Stainless steel
- Body thickness inches (h) 0.71
- Type Rod-shaped, with stud and rubber jacket on magnetic surface
- Thread length inches (l) 0.47
- Diameter inches 0.63
- Brand J.W
- Winco
- Magnet contruction Magnet: neodymium, iron and boron ndfeb (nd type), rubber jacket: elastomer (tpe
- Nominal pulling force 23 n
- A/f inches 0.51
- Thread (d2) M8 x 1.25
