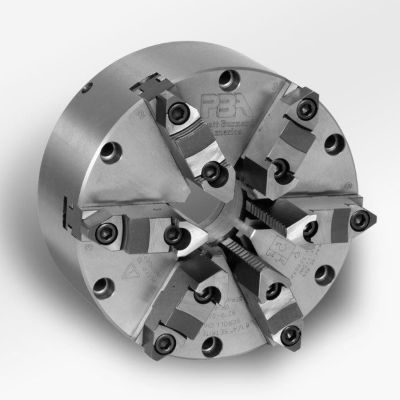

6 jaw self-centering universal steel body setrite chuck - 5" dia. - Pratt burnerd 0516400 features:
- Two-year warranty precision manufactured for adapter mounting .0005 tir repeatability on duplicate parts steel body on sizes 6" thru 24" semi-steel body on the 5" chucks 4 adjusting screws - 5", 6", 8", 10", 12" 8 adjusting screws - 15" sizes 5" to 24" nitride hardened scroll hardened pinion two-piece american standard tongue and groove jaws on chuck sizes 6" thru 24" 5" chucks equipped with one set of solid i.D jaws and one set of solid o.D. Jaws one pinion - 5", 6", 8", 10", 12"; 3 pinions - 15", 18", 24"
- Description Self-centering universal steel body setrite chuck
- Diameter 5"
- Brand Pratt burnerd
- Type Self-centering
- Number of jaws 6
- Mount Recess
- Style Manual
- Series Setrite 263
- Number of pieces 1
- Max rpm 3600
- Through hole 1.30"
- Manufacturers part number 0516400
- Manufacturer's warranty 2 years
