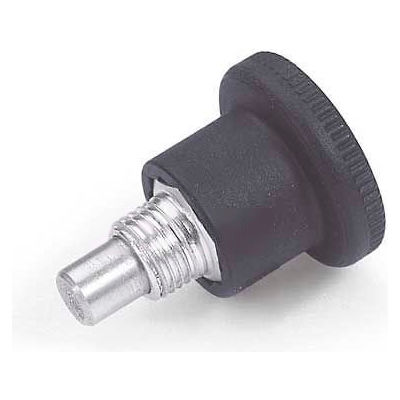

Indexing plunger mini w/ hidden lock lock-out zinc 5.0x18.0n pressure m10x1 thread 7x7mm pin the mini indexing plungers feature small, compact dimensions. These are designed for installation in thin walled sheet metal applications. The plungers are inserted into position by holding them by the knurled knob.
- The wrench flats on the lock nut are exposed when the pin is retracted, so that the plunger can be easily tightened by means of an open end wrench.
- Brand J.W
- Winco
- Overall length (oal) 34 mm
- Thread length 7 mm
- Type Mini w/ hidden lock mechanism
- Thread size M10 x 1.0
- Pin diameter 7 mm
- Pin length 7 mm
- Body construction Zinc plated steel
- Knob diameter 25 mm
- Description Indexing plunger
- End pressure full 18.0 n
- Lock-out Yes
- Lock nut No
- Nose construction Stainless steel
- End pressure start 5.0 n
