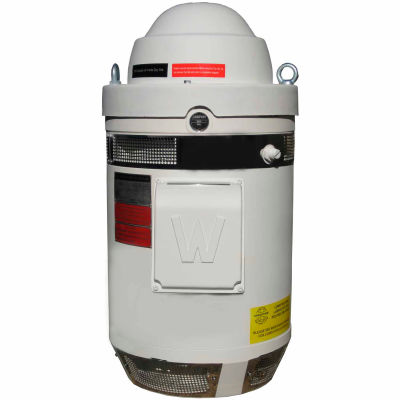

Worldwide electric, wvhs25-18-284tp-12, vhs motor, 25hp, 1800rpm, 284tp, 230/460v, wpi features:
- Vhs motor wpi enclosure with rodent screen protection 1.15 service factor class f insulation vertical p base high efficiency inverter duty 10:1 variable torque spike resistant wiring per nema mg-1 part 31 120 volt space heaters double thrust bearing design (100-500 hp) for deep well applications winding rtds (125-500 hp) white epoxy paint for cooler surface temperature standard coupling size included � mc280-1 (alternate couplings available)
- Horsepower 25
- Enclosure Wpi
- Frame 284tp
- Brand Worldwide electric corporation
- Mounting P-base
- Motor rpm 60hz 1800
- Motor rpm 50hz 1500
- Rpm 1770
- Phase 3
- Voltage 230/460
- Hertz 60/50
- Service factor 1.15
- Efficiency type High
- Ambient temp c 40
- Enclosure type Explosion proof
- Duty Continuous
- Manufacturers part number Wvhs25-18-284tp-12
- Rpm range 1701-1800
- Insulation class F
- Poles 4
- Weight lbs. 483
- Warranty 24 months from invoice
- Fl amps 60.8/30.4
- Opposite end bearing size 6212
- Drive end bearing size 7312b
- Degree of protection Ip23
- Fl efficiency 88
- Temperature-rise B/80k
- Power factor at full load 0.86
