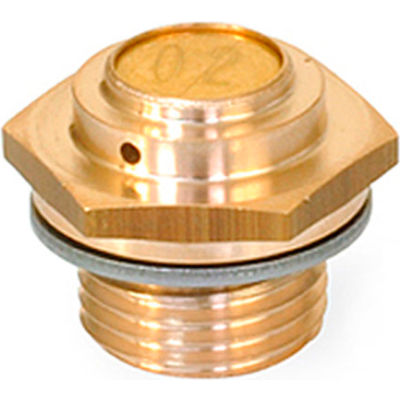

Once the opening pressure given in the table is exceeded, gn 883 breather valves will vent into a container and so protect against excessive internal container pressure. They also feature very compact dimensions. The simple function principle (pressure spring / ball) ensures long and trouble-free use of the valve.
- The installation position is vertical to the top
- Temperature resistant from -22° f to 212° f (-30° c to +100° c).
- Brand J.W
- Winco
- Ball construction 5210 stainless steel
- Valve body construction Brass
- Spring construction 301 stainless steel
- Thread length 6mm
- Opening pressure in mbar 20 (min.) - 80 (max.)
- Thread M10 x 1.0
- Series Gn883
- Ca
- Air passage i/min 1.2mm
- Nut width (point to point) 16mm
- Across flats 14mm
- Nut width 18.5mm
- Sealing ring diameter 17mm
- Manufacturers part number 883-m10x1-20-a-ms
- Sealing washer construction Din 7603 a, nylon, pa6
- Nut height 6mm
