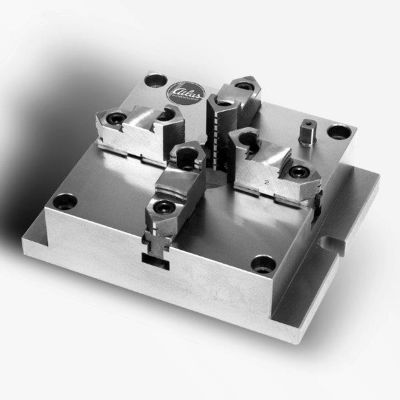

4 jaw front mount dead length collet chuck - 6" - table mount - pratt burnered mca6 features:
- Universal scroll chuck design end-surface clamping design enables fast efficient mounting of several chucks to a worktable super thin design allows greater z-axis machining elongated slots allows fast and easy positioning on worktable, simply use standard t-bolts, versus mounting connecting plates required by conventional chucks milled key-slots on the base plate allows accurate quick changing of the chucks ideal for pallet applications, standard mills, vertical machining centers, angle plates, tombstones, and grinding machines american standard, hard top and master jaws one year warranty
- Description Super thin low profile square chuck
- Brand Pratt burnerd
- Type Self-centering
- Number of jaws 4
- Mount Table
- External grip range .16" min - 5.04" max
- Style Manual
- Chuck size 6"
- Series Series mca
- Number of pieces 1
- Through hole 1.57"
- Manufacturers part number Mca6
- Internal grip range 2.17" min - 5.04" max
- Manufacturer's warranty 1 year
