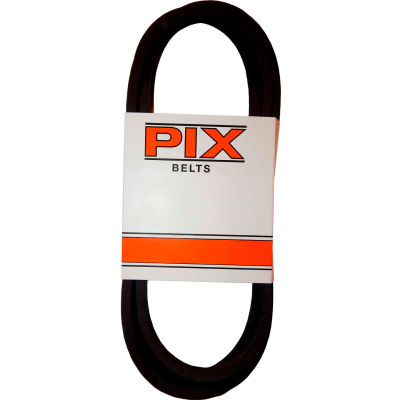

Pix, b146, v-belt 5/8 x 149 pix-x'set®-xs are the first v-belts to enter the power transmission scenario. The continued efforts of our r&d has enabled us to achieve power ratings considerably higher than most of the belts with the same construction available in the market. The ingredients used in the compound are selectively chosen to match the required power ratings thus offering distinct advantages in terms of increased power ratings and increased power of safety on critical drives.
- Features:
- Oil resistant antistatic maximum belt linear speed up to 30 m/sec temperature range: -18°c to +80°c atex certified fras belts are also available applications: primarily used as replacement on industrial drives
- The classical belts are recommended in special applications such as v-flat drives
- In the same manner these belts are advantages where reverse idlers have to be used, because of smaller heights.
- Belt number B146
- Nominal outside length inches 149
- Belt type B/5l, industrial
- Belt style Classic wrapped
- Top width inches 0.656
- Brand Pix north america
- Height mm 11
- Color Black
- Top width mm 17
- Manufacturers part number B146
