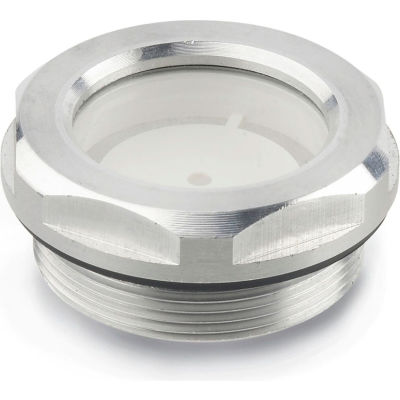

Features:
- Genuine glass of high stability and scratch proof. Sealing with an o-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.
- The seal is housed in a groove and it can therefore not be lost
- In addition, this groove prevents the seal from being extruded when the sight glass is tightened
- The location of this seal allows also the softer elastomer which guarantees better and easier sealing
- Fluid level sight glasses gn 743 can be used on pressurized oil tanks
- Nbr seal: maximum heat resistance: 100° c (212° f)
- When mounting fluid level sight glasses on walls of less than 4 mm thickness, use nut gn 543.1
- Sight glasses can be ordered with or without a reflector
- Note: when mounting fluid level sight glases on walls of less than 4 mm thickness, use nut gn 543.1.
Product details
- Max pressure @ 70°f 180 psi
- Reflector material Heat-resistant technopolymer plastic (polysulfon)
- Country of origin Import
- Sight glass body material Aluminum w/ matte shot-blast finish
- Brand J.W
- Winco
- Series Gn743
- Seal material Nbr rubber (perbunan)
- Sight glass material Natural glass
- Manufacturers part number 743-32-m42x1.5-a
Weights & dimensions
- Diameter 50mm
- Across flats 1.81" (46mm)
- Thread size M42 x 1.5 in
- Inner diameter 32mm
- Thread length 12mm in
- Height 9mm
