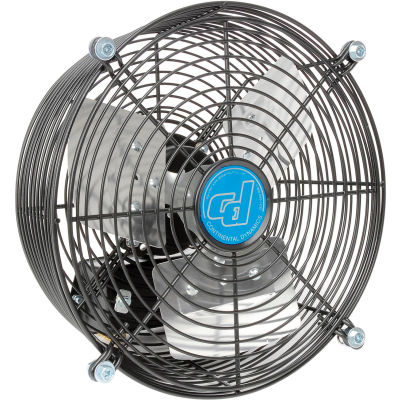

The guard mounted direct drive exhaust fan is made for low-pressure exhausting and cooling applications. Three aluminum fan blades are enclosed in steel spiral wire guards for safety. This fan can be bolted directly to the wall with built-in mounting holes.
- Fan has three speeds of up to 1500 rpm
- The fan measures 10" in diameter
- It is ul, cul listed and conforms to ul507 standard
- The product has a limited warranty of 1 year.
Product details
- Cfm medium 1,100 cfm
- Rpm high 1,500 rpm
- Voltage 120 v
- Number of speeds 3
- Description Guard mounted direct drive exhaust fan
- Assembly required Assembled
- Horsepower 1/30 hp
- Amperage 0.38 a
- Cfm high 1,500 cfm
- Phase 1
- Power cord type Hard wire
- Watts 45 w
- Brand Cd
- Warranty 1 yr
- Cfm low 950 cfm
- Decibels 59
- Max temperature 104° f °f
- Manufacturers part number 246617
Weights & dimensions
- Width 11-1/2 in
- Fan diameter 10 in
- Length 11-1/2 in
- Cord length Not included ft
Compliance & certifications
- Certifications Ul, cul listed, osha & ul507 compliant
