Features:
- Toggle clamp: base sizes 70 and 160: nickel plated brass base sizes 350-3000: black powder coat painted brass case-hardened sheet metal (c10 steel) zinc plated blue passivated finish rod is st. 37 steel copper plated bearing bolt is case-hardened all mobile sections lubricated with special grease hand grip: high quality oil resistant red plastic

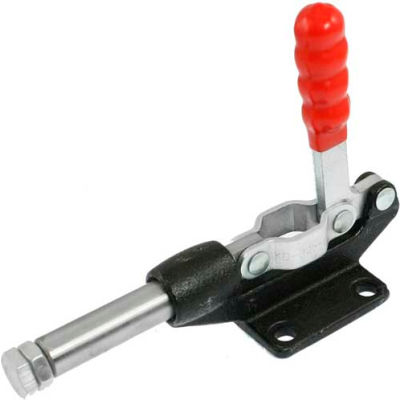

- Description Toggle clamp
- Material Steel
- Brand J.W. Winco
- Base type Horizontal
- Style Push-pull
- S 6.5, (.26)
- M1 41, (1.61)
- M3 35, (1.38)
- M2 15, (.59)
- M4 41, (1.61)
- A 18, (.71)
- B1 122, (4.80)
- B2 55, (2.17)
- Manufacturers part number 550evu2/as
- H2~ 31, (1.22)
- D2 tapped M8 x 1.25
- D1 14, (.55)
- L1 length 164, (6.46)
- D3 7, (.28)
- L3 42, (1.65)
- H1~ 77, (3.03)
- Max holding capacity 8000 n
- T 16, (.63)
- Size ref Size 550
- Series Gn 842
- W hub 42, (1.65)
- L2 154, (6.06)
- Type Heavy duty
