Product Details

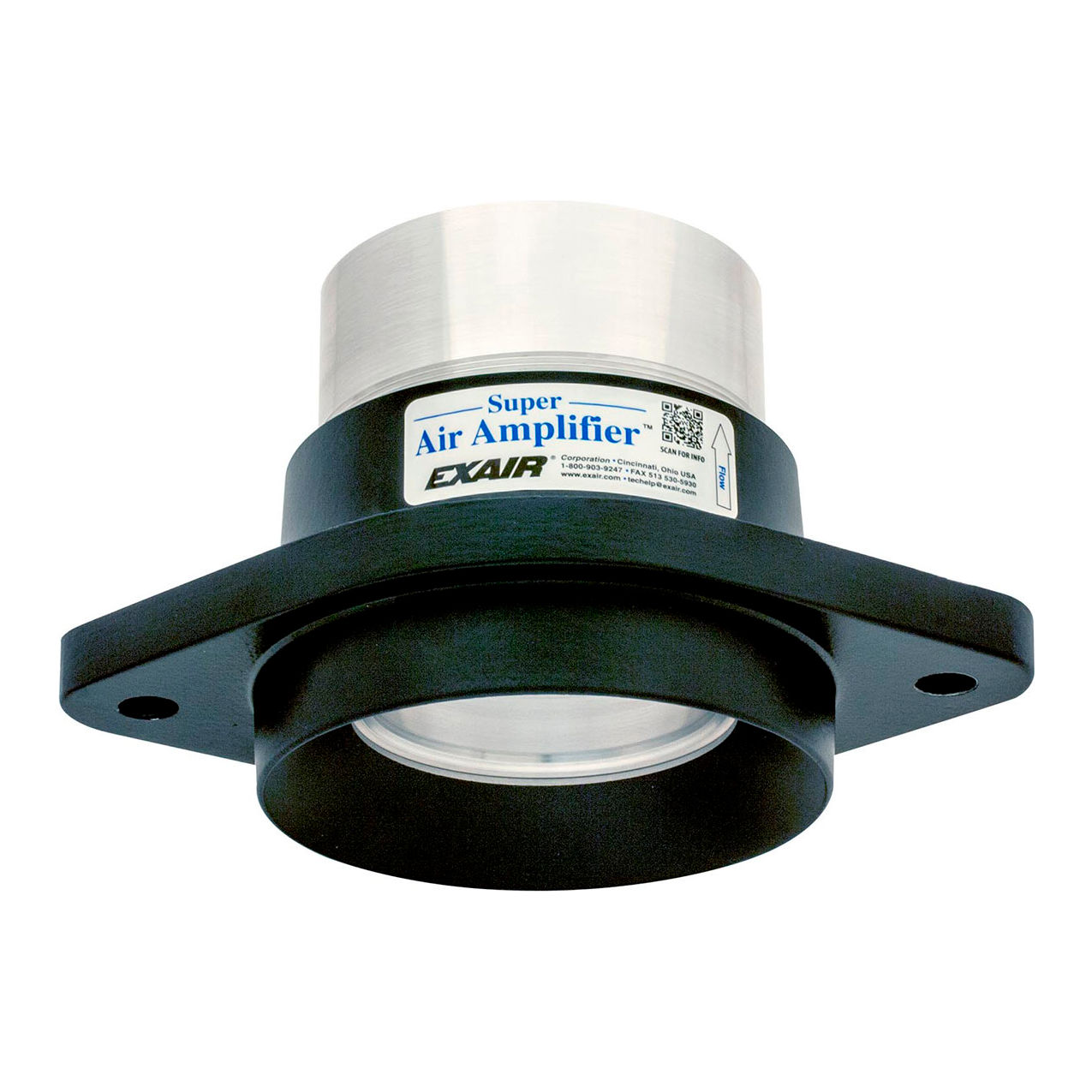

Super Air Amplifiers pull in large volumes of surrounding air using a small amount of compressed air to produce high volume, high velocity outlet flows through a fixed air gap, utilizing the Coanda effect, a basic principle of fluidics. These amplifiers offer a simple, low-cost method to circulate air, move smoke, fumes, and light materials, and are effective as blowers to cool, clean, and dry parts or processes, as well as in workstation dust collection applications. They create output flows up to 25 times their compressed air consumption rate. Both the vacuum and discharge ends can be ducted for drawing fresh air from other locations or removing smoke and fumes. Applications include venting welding smoke, cooling hot parts, drying wet parts, cleaning machined parts, distributing heat in ovens or molds, ventilating confined areas, dust collection, and exhausting tank fumes. Compared to fans, these amplifiers are rated for environments up to 700°F (374°C), are compact, lightweight, portable, require no electricity or moving parts, have easily ducted ends, offer instant on/off operation, variable force and flow, and produce no RF interference. Compared to venturies and ejectors, they provide more air with lower compressed air consumption, higher flow amplification, no internal obstructions, meet OSHA pressure and noise requirements, and operate quietly. The amplifiers are CE compliant, OSHA safe, comply with OSHA's safety requirements, the EU General Product Safety Directive (2001/95/EC), and meet noise limitation requirements of the EU Machinery Directive (2006/42/EC), with sound level measurements taken at 3 feet away. These products are conflict mineral free.
